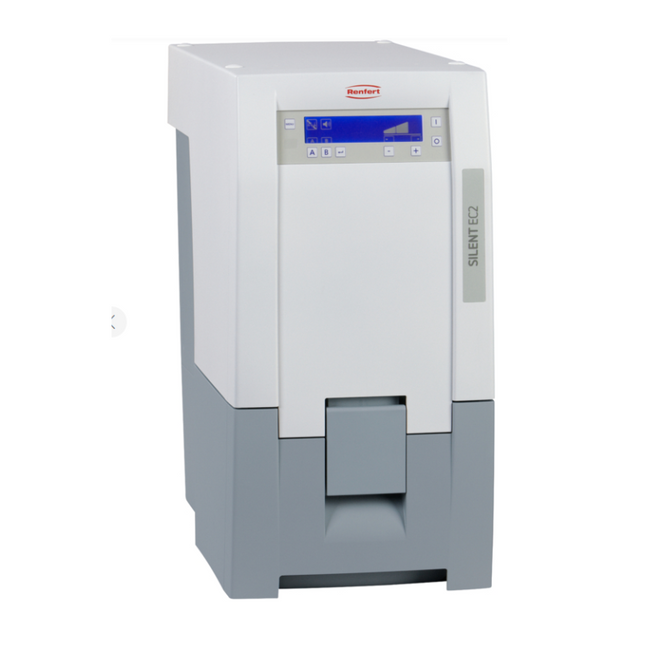

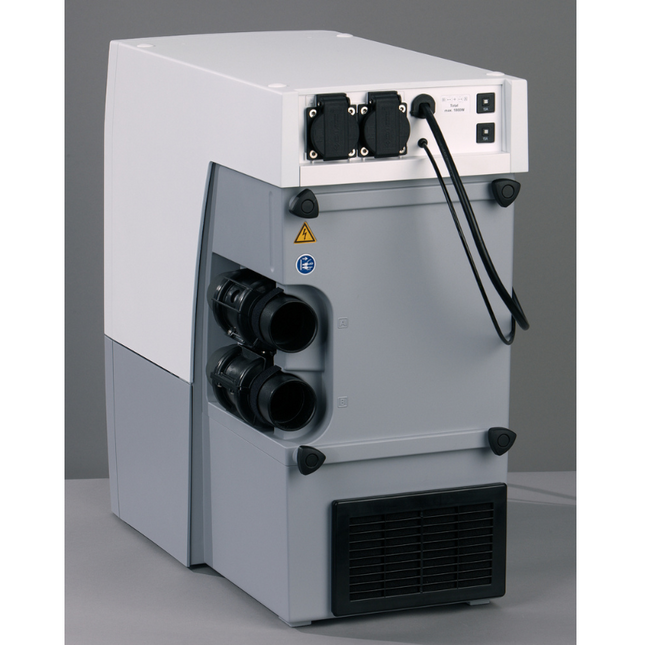

SILENT EC2 Two workbench extraction Powerful, bag-free extraction unit with two independently controlled suction ports, automatic filter cleaning and EC motor technology. Advantages Reliable production process through brushless EC motor technology (guaranteed runtime of 5000 operating hours). Consistant suction power thanks to automatic re-adjustment. Low operating noise of max. 55 dB (A).   SILENT EC2, 100-120 V SILENT EC2, 100 V SILENT EC2, 220-240 V Item number 29371000 29372000 29370000 Use Workplace extraction Workplace extraction Workplace extraction Permissible mains voltage 120 V 100 V 220 - 240 V Permissible mains frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz Weight (empty) 18.5 kg40.8 lbs 18.5 kg40.8 lbs 18.5 kg40.8 lbs Dimensions (W x H x D) 11.2 x 21.1 x 21.2" 11.2 x 21.1 x 21.2" 11.2 x 21.1 x 21.2" Power consumption 1,610 hp Connection pressure 4.5 - 8 bar65 - 116 psi 4.5 - 8 bar65 - 116 psi 4.5 - 8 bar65 - 116 psi Nominal voltage 120 V 100 V 230 V Volume flow (max.) 3,980 l/min2.34 ft³/s 3,980 l/min2.34 ft³/s 3,980 l/min2.34 ft³/s Max. depression 262 hPa3.8 psi 255 hPa3.7 psi 257 hPa3.73 psi Motor technology EC EC EC Filter technology Bag- free Bag- free Bag- free Filter quality Class M according to EN 60335-2-69 Class M according to EN 60335-2-69 Class M according to EN 60335-2-69 Max. permitted connected load of the plug-in socket 430 W 350 W 1,840 W Total connected power 1,800 W 1,500 W 3,450 W Number of suction hoses 2 2 2 Sound pressure level (LpA) (at max. volume flow) 55 dB(A) 55 dB(A) 55 dB(A) Ø suction fittings interior 45 mm1.77 " 45 mm1.77 " 45 mm1.77 " Ø suction fittings exterior 50 mm1.97 " 50 mm1.97 " 50 mm1.97 " Fill level dust collector 7 l1.85 gal 7 l1.85 gal 7 l1.85 gal

Read more less

For compatible milling burrs for this machine, click here. Streamline Lab Operations Maximize Efficiency ·Automatic Calibration ·Tools Lifetime Display · Remote Connection 90° Vertical Milling Supported Achieve more aesthetic front teeth design with 90° vertical milling Stay in Control The LED light milling progress bar helps you keep track of the milling progress in real-time. Dimension: 443.5 × 718 × 628.5 mmWeight: 87kgInput Voltage: AC 200~240V 50~60HzAxis Quantity: 5-axis simultaneous motionMilling Range: X/Y/Z:167/206/104mm   A:±30° B:±360°Max Rotation Speed: 30,000rpmMilling Materials: G-CAM, Zirconia, Wax, PMMA,  PEEK and soft materialsTools Quantity: 11 (2 + 1 + 0.6 Φ4 calibration bur)

Read more less

The non-tip and non-slip Dustex master plus extractor box protects against splinters, dust and fumes. An ergonomically well-conceived form and height-adjustable arm rests enable free, comfortable working. Details Comfortable working due to large arm inlets. Bright, built-in illumination (4800 Lux). High safety thanks to laminated protective screen with silicone coating. Versatile use due to compact and sturdy, light-weight powder-coated housing. Practical wooden support, made of hard beech wood. Advantages Extraction directly at the object ensures a clear view. Maximum freedom of movement thanks to a large inner volume (17 l). PerfectView: Innovative LED Technology for best contour and detail recognition. Item Number 26261105 Use Dust extractor box Permissible Mains Voltage 100 - 120 V Permissible Mains Frequency 50 - 60 Hz Weight 5 kg11 lbs Dimensions (W x H x D) 380 x 285 x 400 mm15.0 x 11.2 x 15.8'' Nominal Voltage 120 V Lamp Power 16 W Ø Suction Fittings Interior 35 mm1.38 " Ø Suction Fitting Exterior 40 mm1.57 "

Read more less

Powerful, bag-free extraction unit with automatic filter cleaning and EC motor technology for heavily used CAM units. Advantages Bi-directional communication between extraction unit and CAM unit thanks to the PLC interface. Low operating noise of max. 54.3 dB (A). Reliable production process through brushless EC motor technology (guaranteed runtime of 5000 operating hours). Details High volume flow of approx. 4000 l/min. No follow-up costs due to bag-free dust collection. Safe disposal of fine milling dust with the help of a disposal bag.  Item number 29391000 Use Extraction unit for CAM systems Permissible mains  voltage 120 V Permissible mains frequency  50 - 60 Hz Weight (empty) 18 kg39.7 lbs Dimensions (W x H x D) 270 x 535 x 540 mm10.6 x 21.1 x 21.2 " Nominal voltage 120 V Volume flow (max.) 3,984 l/min2.34 ft³/s Max. depression 262 hPa3.8 psi Motor technology EC Filter technology Bag-free Filter quality  Class M according to EN 60335-2-69 CAM interface RJ 45 socket Number of suction hoses 1 Sound pressure level (LpA) (at max. volume flow) 54.3 dB(A) Ø suction fitting interior 42 mm1.65 " Fill level dust collector 7 l1.85 gal
