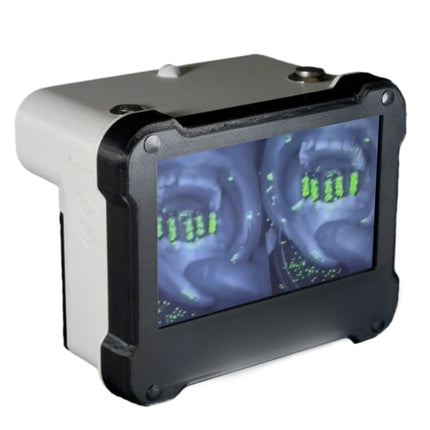

Photogrammetry I-Loc Scanner

Description

Full specifications:

I-Loc (Implant Location) The DP Implant Position Scanner measures implant positions by using coded marker abutments and camera system. The output is an .STL CAD files of the implant positions that can be used as the basis for your full arch designs.

Advantages

  • Fast, Wireless operation
  • Lightweight
  • Integrated screen
  • Affordable

Accuracy
•Positional Accuracy*: ± 9 µm
•Positional Repeatability*: ± 6 µm
•Angular Repeatability*: ± 0.034° (1/30th of a degree)
•Operating temperature: 23⁰C ± 5 ⁰C
•Operational in ambient lighting up to 5000 lux.
*Please download our Accuracy report for full test details.
Scan Time (typical)
•Calibration: 1 min 30 sec typical.
•Scan time: 20 sec typical
(but depends on the number of posts and CPU cores).
Hardware Features
•Cameras: 2 x 2MP global shutter
•Battery Life: Up to 25 scans / 2.5 hours of standby
•Charge Time: 2.5 hours
•Battery Type: Lithium ion
•Dimensions (l w h): 14.2 x 11.8 x 9.7 cm (approx. 6” x 5” x 4”)
•Weight (scanner only): 650g
•Storage temperature: 5 ⁰C to 40 ⁰C
(10⁰C to 25 ⁰C for optimum battery longevity)

Software Functions
•Auto calibration
•Real-time scanning feedback
•Able to scan 6 posts per scan
•Auto merge can combine up to 10 posts per jaw.
•STL and coordinate export
•Iterative Noise Reduction for enhanced accuracy.
PC Requirements
•Windows 10 & 11
•RAM: 16 GB recommended, 8 GB minimum.
•CPU: > 8 cores recommended, 4 cores minimum.
Connectivity and Power Supply
•USB 2.0, USB 3.0, or Wi-Fi Data Transfer.
•Input Voltage: AC 110V – 240V, 50/60Hz, converted to 5V 4A.
•PSU supplied with a UK, EU, US, or AU plug type, depending on your location.
•Power consumption: 15W typical.
